WOVEN WIRE MESH AS PER ISO 4783-3

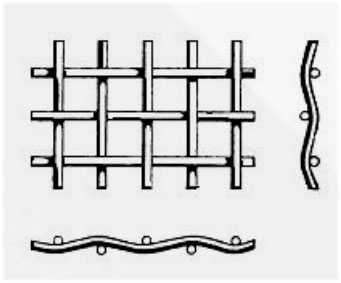

ISO 4783-3 Type A
Double crimped woven mesh

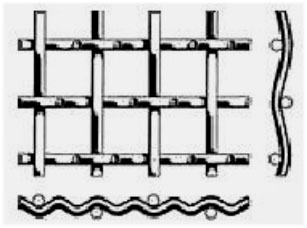

ISO 4783-3 Type B (Single)
Intermediate crimped woven mesh

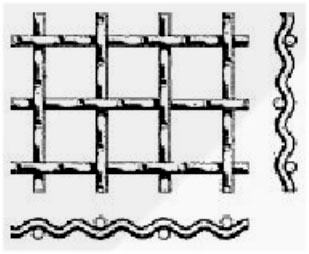

ISO 4783-3 Type C (Double)
Intermediate crimped woven mesh
ISO 4783-3 Type D
Lock crimped woven mesh
ISO 4783-3 Type E
Flat top woven mesh
ISO 4783-3 Type F
Pressure welded mesh (Spot welded mesh)


Metallic screens are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio.
Precise screening capability due to their crimping style and are manufactured using the best steel alloy to withstand high abrasion, tension and impact.
Manufacturing high quality meshes also requires a strong fo cus on the inside tension of the mesh. Falcon Screening Media has the know-how that comes with experience to ensure the appropriate tension to avoid minimum vibrations that can cause the mesh to break.

High-Resistance Steel UNE-EN-10270-1:2012
ISO 8458-2:2002
DIN 17223
Stainless Steel UNE-EN-10088-3:2008
Stainless Steel Quality: Austenitic AISI-304 / EN-14301
AISI-316L / EN-14404
AISI-310 / EN-14845
Stainless Steel Quality: Duplex AISI-S32001 / EN-14482
Technical requirements and testing: ISO-14315:1997
ISO-4783-3:1981
ISO-9044:1999
ISO-2194:1991
